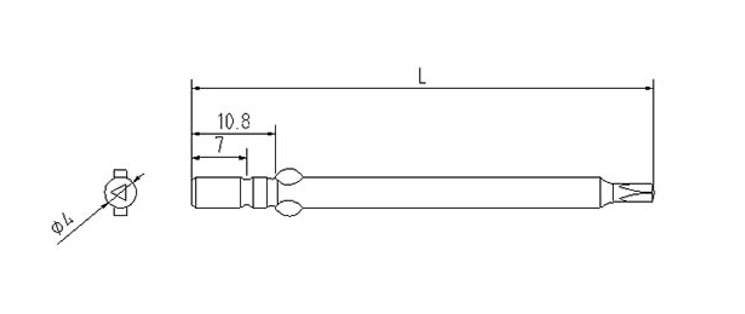

φ4三角起子頭

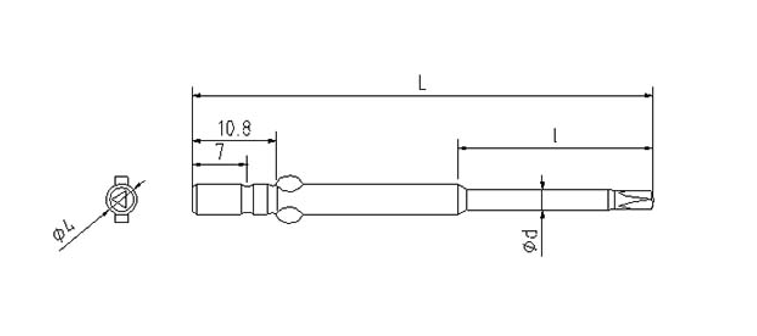

φ4三角起子頭帶變徑

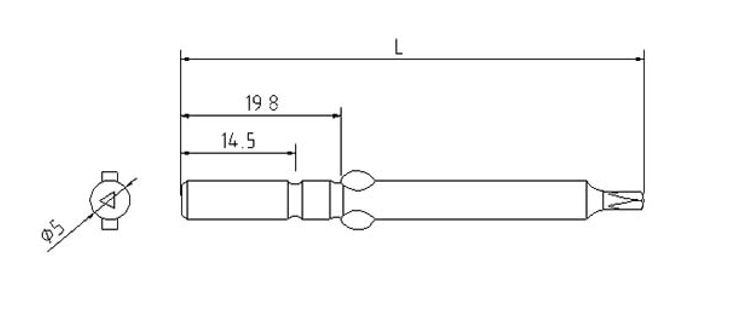

φ5三角起子頭
φ5三角起子頭帶變徑

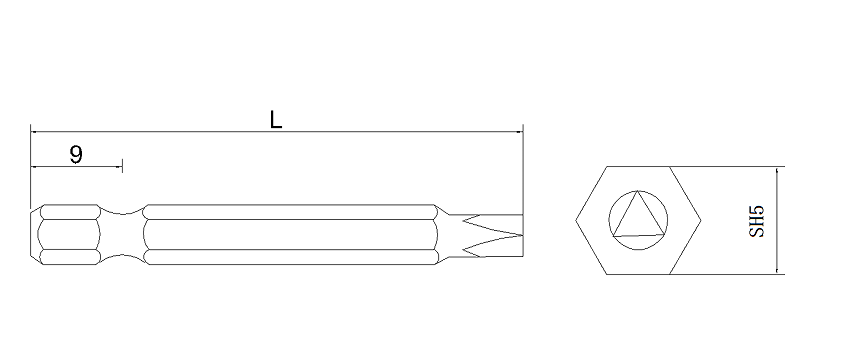

SH5三角起子頭

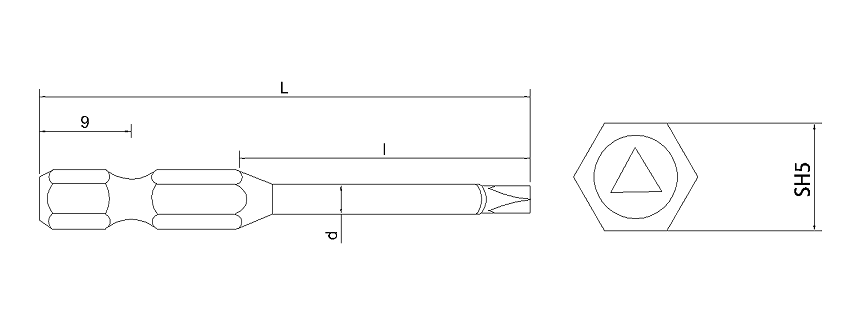

SH5三角起子頭帶變徑
SH1/4三角起子頭

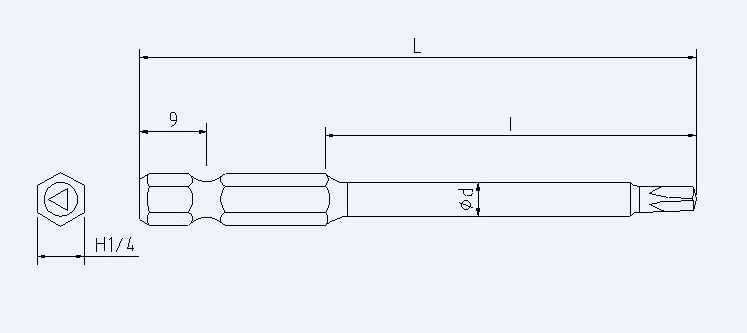

SH1/4三角起子頭帶變徑
對特殊螺絲，支持非標定制，歡迎來圖來樣制作，歡迎致電0512-66653188或QQ咨詢報價。
| 蘇州固德-φ4三角起子頭標準庫存項目表 | |||||||
| NO | 夾柄 | 總長 | 縮小直徑 | 縮小長度 | 頭部 | 硬度 | 完整規格 |
| L(mm) | d(φmm) | L1(mm) | |||||
| 1 | φ4 | 40 | △1.8 | G | φ4*40*△1.8 | ||
| 2 | φ4 | 40 | △2.0 | G | φ4*40*△2.0 | ||
| 3 | φ4 | 40 | △2.3 | G | φ4*40*△2.3 | ||
| 4 | φ4 | 40 | △2.7 | G | φ4*40*△2.7 | ||
| 5 | φ4 | 60 | 2.5 | 25 | △1.8 | G | φ4*60*φ2.5*25*△1.8 |
| 6 | φ4 | 60 | 3 | 25 | △2.0 | G | φ4*60*φ3.0*25*△2.0 |
| 7 | φ4 | 60 | △2.3 | G | φ4*60*△2.3 | ||
| 8 | φ4 | 60 | △2.7 | G | φ4*60*△2.7 | ||
| 蘇州固德-φ5三角起子頭標準庫存項目表 | |||||||
| NO | 夾柄 | 總長 | 縮小直徑 | 縮小長度 | 頭部 | 硬度 | 完整規格 |
| L(mm) | d(φmm) | L1(mm) | |||||
| 1 | φ5 | 60 | 2.5 | 25 | △1.8 | G | φ5*60*φ2.5*25*△1.8 |
| 2 | φ5 | 60 | 3.0 | 25 | △2.0 | G | φ5*60*φ3.0*25*△2.0 |
| 3 | φ5 | 60 | 4.0 | 25 | △2.3 | G | φ5*60*φ4.0*23*△2.3 |
| 4 | φ5 | 60 | △2.5 | G | φ5*60*△2.5 | ||
| 5 | φ5 | 60 | △2.7 | G | φ5*60*△2.7 | ||
| 蘇州固德-SH1/4三角起子頭標準庫存項目表 | |||||||
| NO | 夾柄 | 總長 | 縮小直徑 | 縮小長度 | 頭部 | 硬度 | 完整規格 |
| L(mm) | d(φmm) | L1(mm) | |||||
| 1 | SH1/4 | 50 | 2.5 | 25 | △1.8 | G | SH1/4*50*φ2.5*25*△1.8 |
| 2 | SH1/4 | 50 | 3.0 | 25 | △2.0 | G | SH1/4*50*φ3.0*25*△2.0 |
| 3 | SH1/4 | 50 | 3.5 | 25 | △2.3 | G | SH1/4*50*φ3.5*25*△2.3 |
| 4 | SH1/4 | 50 | 4.0 | 25 | △2.5 | G | SH1/4*50*φ4.0*25*△2.5 |
| 5 | SH1/4 | 50 | 4.5 | 25 | △2.6 | G | SH1/4*50*φ4.5*25*△2.6 |
| 6 | SH1/4 | 50 | 5.0 | 25 | △3.0 | G | SH1/4*50*φ5.0*25*△3.0 |
| 7 | SH1/4 | 75 | 2.5 | 50 | △1.8 | G | SH1/4*75*φ2.5*50*△1.8 |
| 8 | SH1/4 | 75 | 3.0 | 50 | △2.0 | G | SH1/4*75*φ3.0*50*△2.0 |
